NEO SENTINEL — Industrial Cybersecurity for Control-System Subsystems

An OT-native cybersecurity scope for DCS, SIS, CEMS, DAS and packaged control subsystems — six engineered defence domains delivered against IEC 62443, and proven at acceptance with signed evidence rather than statements of intent. NEO SENTINEL is our own asset-monitoring, secure-configuration and maintenance platform at the centre of it.

The Problem: Subsystems Inherit the Plant’s Risk but Not Its Security Budget

Analyser shelters, CEMS and DAS packages, compressor and boiler control skids — these arrive as vendor-supplied subsystems, get patched into the plant network, and then sit there for fifteen years. They exchange data with enterprise IT, they are accessed remotely by the vendor, and they very often run unmanaged local accounts on unpatched operating systems.

Six risk drivers show up on almost every subsystem we assess:

Risk driver	Why it matters on a control subsystem
IT/OT interconnection	The subsystem exchanges data with enterprise IT. Without a controlled DMZ, any enterprise incident can reach control assets.
Uncontrolled remote access	Vendor and engineering access without gateway, MFA and audit is the most common breach entry path in industrial systems.
Malware and USB exposure	Signature-based antivirus alone cannot stop zero-day or USB-borne malware on OT hosts.
Unpatched vulnerabilities	OS patches cannot be applied blindly during operation — unmanaged, they accumulate into exploitable debt.
Unmanaged accounts	Local accounts with weak or shared passwords defeat every other control and cannot be audited.
No visibility, untested recovery	Without monitoring, incidents are found late. Without restore tests, backups fail exactly when needed.

Positioning: OT-Native, Not IT-Generic

The difference between an IT security scope and an OT security scope is not the technology list — it is what happens when a control decision conflicts with a security decision. We engineer inside Level 2 and Level 3 control networks as our day job, so the controls are designed around plant operation rather than against it: patching is scheduled by network level with restart under manual control, monitoring collects passively first, and no control is accepted until it has been demonstrated on the running configuration.

Standards Alignment

Reference	How it is used
IEC 62443 (SL2 target)	Zone and conduit design, security-level target for the subsystem boundary
Purdue / ISA-99 layering	Level 2 control, Level 3 site operations, Level 3.5 DMZ, Level 4 enterprise
Owner security requirements (OSR-class checklists)	Per-category control requirements, executed row by row and signed at FAT/SAT
Plant operating procedures	Patch windows, restart authority, access approval workflow

Six Coordinated Defence Domains

Every layer an attacker must cross is engineered, verified and evidenced. Each domain is a separate work-breakdown family, so scope and price move together.

#	Domain	What is engineered
1	Identity & Access	Domain governance: redundant domain controllers, DNS zones, OU/GPO policy set, certificate authority, RADIUS authentication, local-account cleanup
2	Endpoint Protection	Centralised antivirus, application whitelisting, OS hardening baseline, WSUS patch management with plant-safe scheduling
3	Network Segregation	Zone and conduit design, perimeter (L3.5) and control (L2) firewalls, managed switch hardening, controller and HMI protocol protection
4	Secure Remote Access (option)	Remote access gateway, multi-factor authentication, time-limited least-privilege sessions, full session audit
5	Monitoring & Detection	NEO SENTINEL platform, NIDS on SPAN mirrors, centralised log collection, configuration compliance baseline
6	Backup & Recovery	Backup infrastructure and schedules, retention cycles, and a verified restore — timed and documented

Governance and assurance — functional design specification, risk assessment, FAT and SAT execution, documentation — span all six domains.

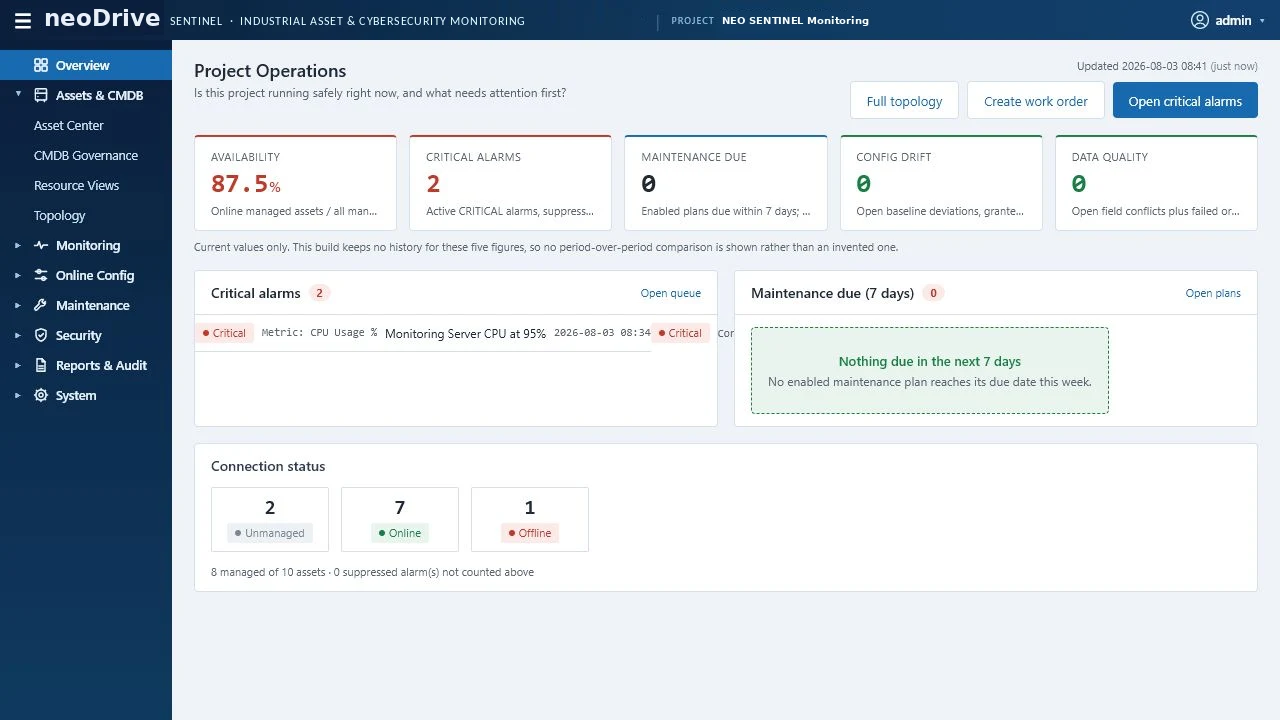

NEO SENTINEL project operations dashboard showing availability, critical alarms, configuration drift and data quality — NEO SENTINEL project operations dashboard — availability, critical alarms, configuration drift and data quality on one screen (demo dataset).

NEO SENTINEL: One Platform for Visibility, Configuration and Maintenance

NEO SENTINEL is neoDrive proprietary software, engineered for the same L2/L3 control networks it protects. It is what turns the monitoring domain from a shopping list of third-party tools into a single system with one accountable vendor.

Capability	What it does
Asset monitoring	Live availability and performance of every server, workstation and network device; complete asset inventory fed by NIDS discovery
Secure configuration	Configuration baselines, drift detection and scheduled compliance reports mapped to the approved setting values
Intelligent maintenance	Maintenance planning from real device health data — alarms, trends and lifecycle records in one place

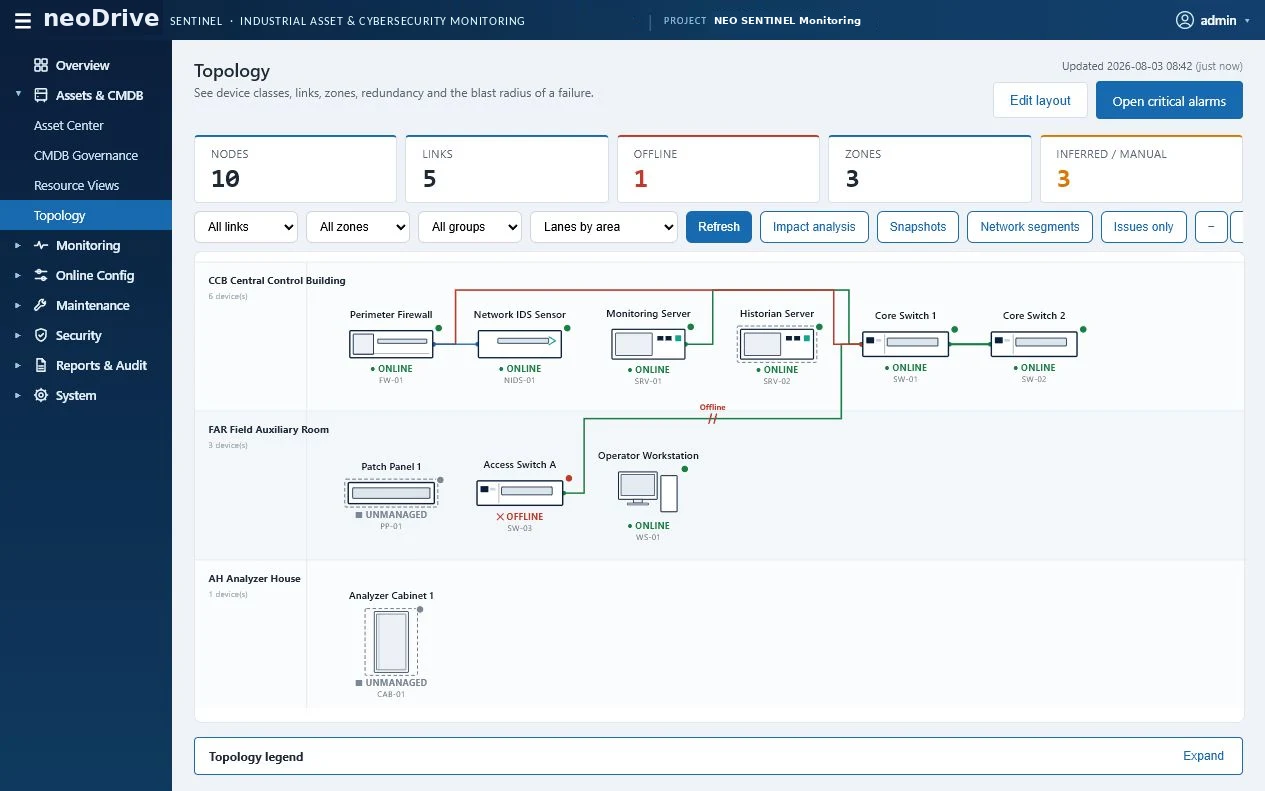

NEO SENTINEL network topology view showing zones, links and offline blast radius — Topology view — zones, conduits and the blast radius of any offline node (demo dataset).

How It Collects

Source	Method	What it yields
Servers & workstations	Agent / WMI / SNMP	Health, performance, configuration state
Switches & firewalls	SNMP / syslog	Status, interfaces, rule and configuration changes
NIDS sensors	Passive SPAN mirror	Asset discovery and threat alerts feeding the asset base
Security logs	Central syslog	Retained per specification for the evidence record

The SENTINEL server sits on the control network (Level 3). Collection is passive first, so there is no added load on plant traffic. Reports export to CSV and PDF, which is what makes them usable directly as FAT and SAT evidence.

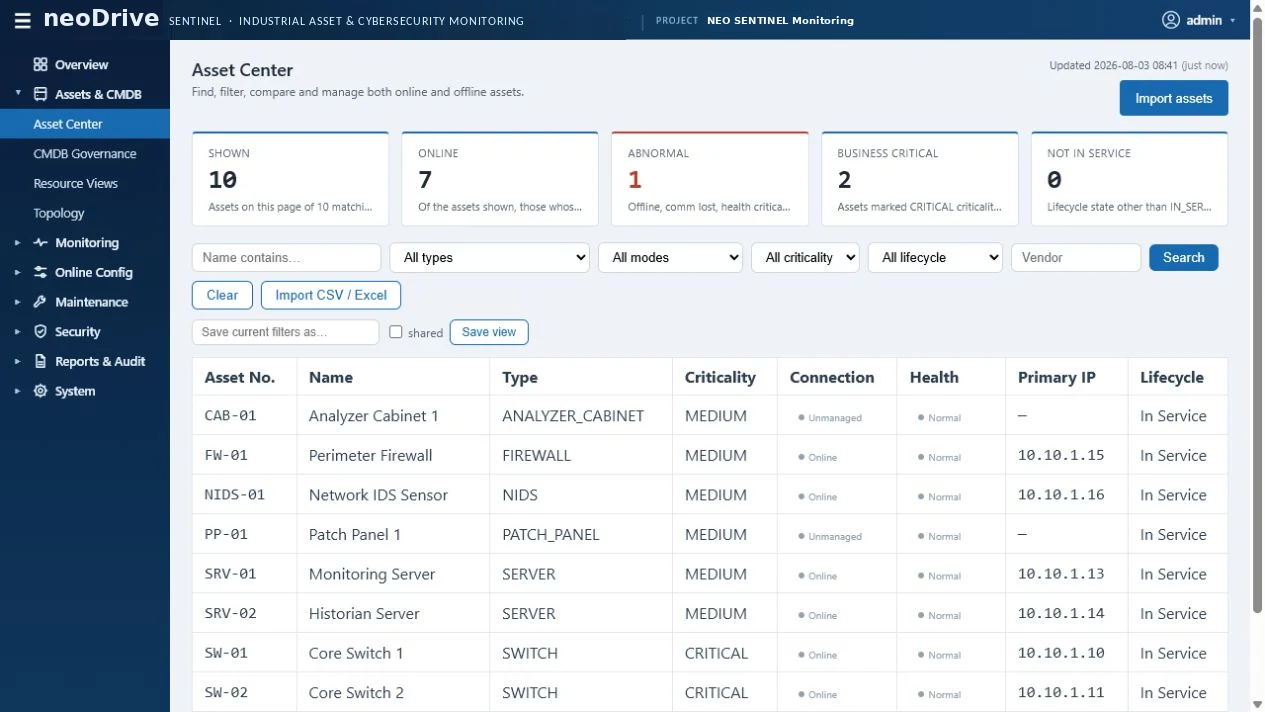

NEO SENTINEL asset centre listing every server, workstation, switch and firewall with criticality, health and lifecycle — Asset centre — every in-scope device with criticality, connection, health and lifecycle state (demo dataset).

Evidence-First Acceptance

The failure mode of most industrial security scopes is that they are accepted on a document rather than on a demonstration. Every control we deliver has a defined verification method fixed before configuration starts:

Domain	Deliverables	Acceptance evidence
Identity & Access	Domain controllers, GPO policy set, CA, RADIUS, account inventory	Replication and DNS test logs, gpresult exports per endpoint, signed checklist rows
Endpoint	AV server and agents, enforced whitelist, hardened endpoints, WSUS	Agent and scan reports, blocked-execution test on the enforced whitelist, per-endpoint hardening checklists
Network	Firewall rule matrix, configured firewalls, hardened switches	Rule exports, blocked-traffic and port-security tests, design review record
Monitoring	NEO SENTINEL in operation, NIDS, central logging, compliance reports	Alarm and alert tests, asset-list export, sample compliance report
Backup & Recovery	Backup infrastructure, clients, schedules, restore procedure	Backup job success logs and a timed restore test report
Governance	FDS, risk assessment, FAT/SAT reports, evidence pack, as-built documents	Approval records, signed FAT and SAT reports, transmittals

The principle: you sign against a record — test logs, exports, screenshots and reports — collected item by item. A backup that has never been restored is a hope, not a control.

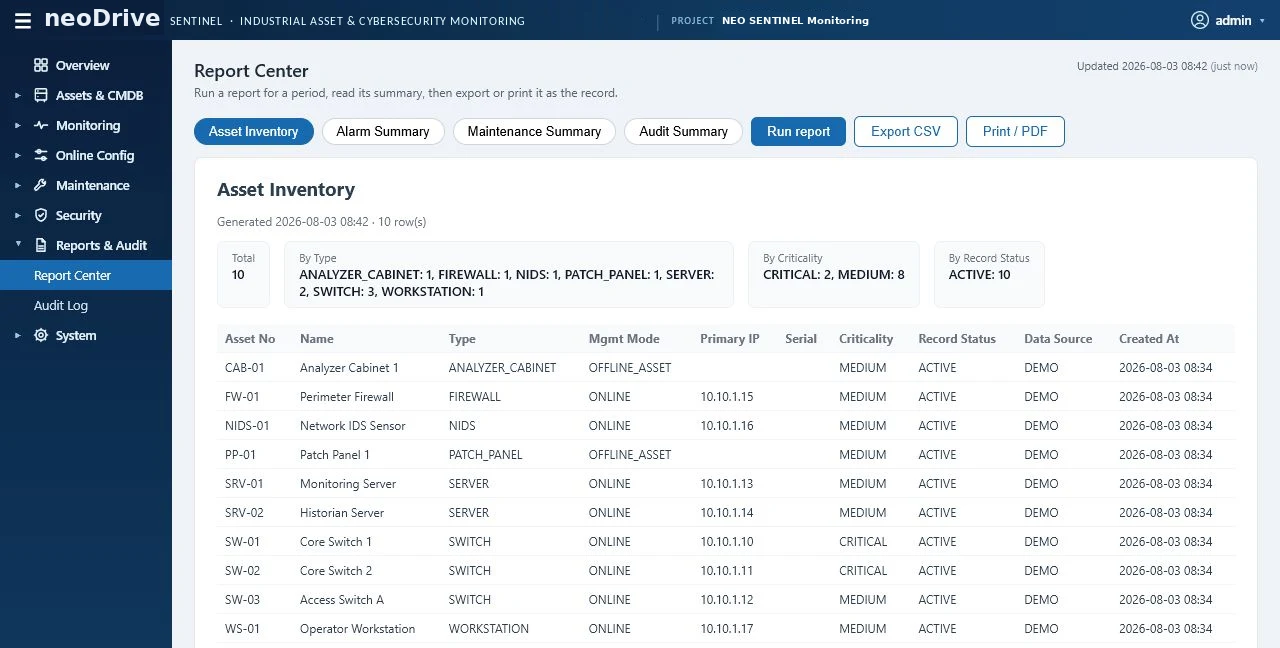

NEO SENTINEL report centre with asset inventory report and CSV or PDF export — Report centre — inventory and compliance reports exported to CSV/PDF for the FAT and SAT evidence record (demo dataset).

Requirement Coverage and Traceability

Owner cybersecurity checklists for subsystem-class equipment typically define around thirteen control categories and well over a hundred individual check rows. Each category is mapped to a solution module, a work-breakdown family and a named piece of acceptance evidence before work starts — nothing implicit:

Control category	Solution module	WBS family
Access control	Identity & Access	ACC
Vulnerability management — hardening	Endpoint Protection	END
Vulnerability management — patching	Endpoint Protection	END
Malware protection	Endpoint Protection	END
Controller / HMI protection	Network Segregation	NET
Switch and firewall hardening	Network Segregation	NET
Security log collection	Monitoring & Detection	MON
Asset management / NIDS	Monitoring & Detection	MON
Network monitoring system	Monitoring & Detection	MON
Configuration compliance management	Monitoring & Detection	MON
System backup	Backup & Recovery	REC
Documentation and drawings	Deliverables	GOV
Cybersecurity risk assessment	Implementation	GOV

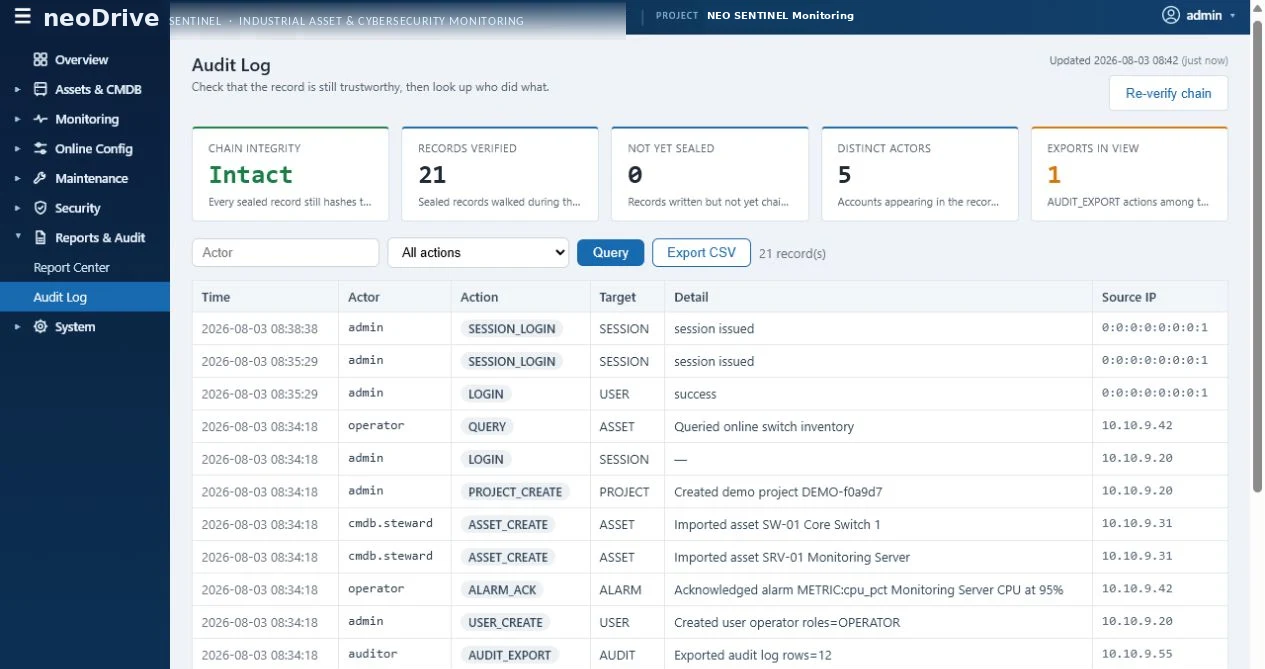

NEO SENTINEL audit log showing recorded configuration and access changes with integrity status — Audit log — every configuration and access change recorded with an integrity check (demo dataset).

A Gated Delivery Method

The scope is frozen at a gate, designed at a gate, and accepted against a procedure. No date is promised before kickoff, because the schedule depends on inputs only the client holds.

Stage	Content	Gate
1. Requirement confirmation	Asset inventory, drawings, checklist applicability	Scope freeze (G1)
2. Detailed design	FDS, architecture, firewall rule matrix, policy values	Design approval (G2)
3. Configuration	Build and configure all six domains per approved design	—
4. Internal verification	Checklist dry run — findings fixed before the client sees the system	—
5. Factory acceptance test	Client-witnessed tests per approved procedure	Signed FAT report
6. Site acceptance test	Site validation and punch-list closure	Signed SAT report
7. Handover	Documentation package, as-built, training and transfer	—

Transparent Pricing Mechanics

Cybersecurity scopes are notorious for quotations that cannot be interrogated. Ours is built from a unit man-day model with an explicit quantity factor, so repeat work is charged at its true marginal cost:

Work type	Behaviour	Repeat ratio
Type A — design and documents	First unit carries the design effort; later units reuse heavily	r ≈ 0.2
Type B — repeat configuration	First device validates the design; same-type devices reuse it	r ≈ 0.5
Type C — per-device and site work	Effort repeats per unit; site days are never compressed	r ≈ 0.9

K_q = 1 + (Quantity − 1) × r, and Total = Base × K_q × K_c. A worked example: base 10 man-days at quantity 4 with r = 0.5 gives K_q = 2.5, so 25 man-days — not 40. Every quantity change re-prices mechanically, which removes renegotiation ambiguity in both directions.

Scope Boundaries

A clearly bounded scope is what prevents surprises at acceptance. Quantities are frozen against the client asset inventory at kickoff; anything outside the inventory is outside the scope until it is priced in.

Typically included	Typically excluded unless separately quoted
Design, configuration and verification of the six domains	Hardware and software licences
FDS, procedures, risk assessment, test documentation	Corporate IT network changes
FAT execution and SAT support with evidence packs	Legacy or third-party systems outside the asset inventory
Checklist execution and signed results	24/7 managed SOC operations and post-warranty updates
Single technical and commercial point of contact	Travel, visas and accommodation (quoted separately)

Where This Fits

Vendor packages entering a secured plant — CEMS, DAS, analyser shelters, compressor and boiler skids that must satisfy an owner’s third-party cybersecurity requirements before they are accepted.
Existing subsystems being brought into compliance — where a security audit has produced findings and someone has to close them with evidence.
DCS and SIS revamps — where segmentation, account governance and monitoring should be engineered in during the project rather than retrofitted afterwards.
Multi-site programmes — where a repeatable baseline and a quantity-based price model matter more than a single bespoke design.

Request a NEO SENTINEL Assessment

Tell us the subsystem, the approximate device count (servers, workstations, firewalls, switches) and the owner requirement set you have to satisfy. We will come back with a scope outline, the applicable control categories and a quantity-based estimate — and the conversation will be with an engineer, not a sales call.
